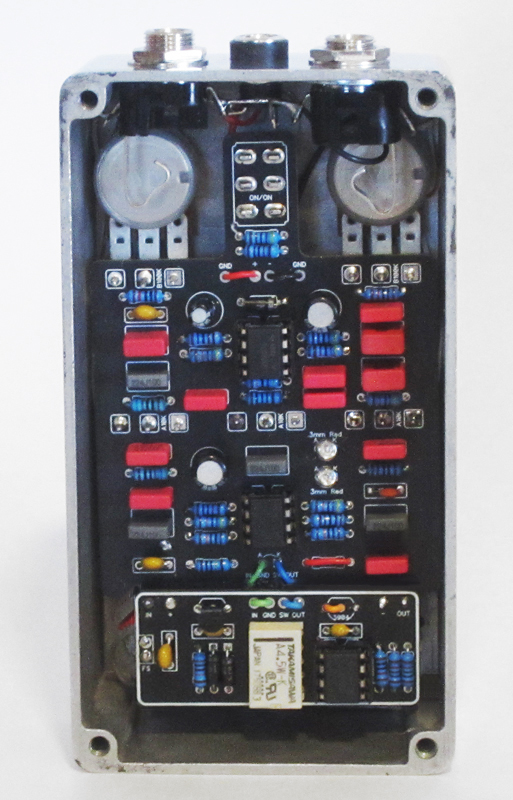

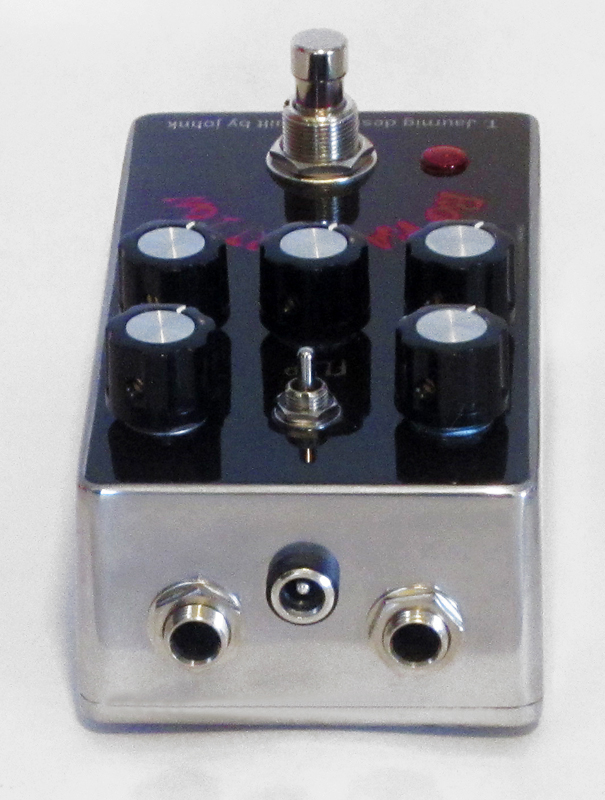

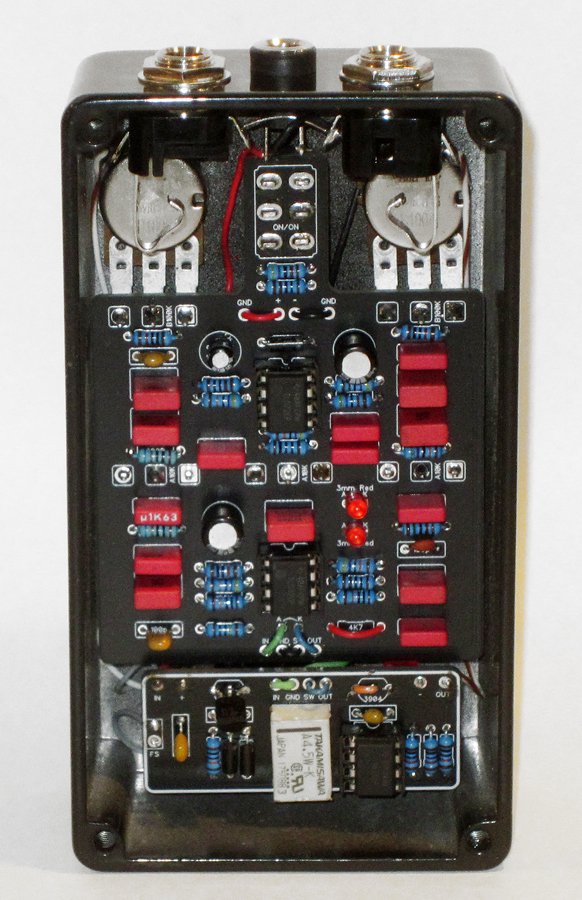

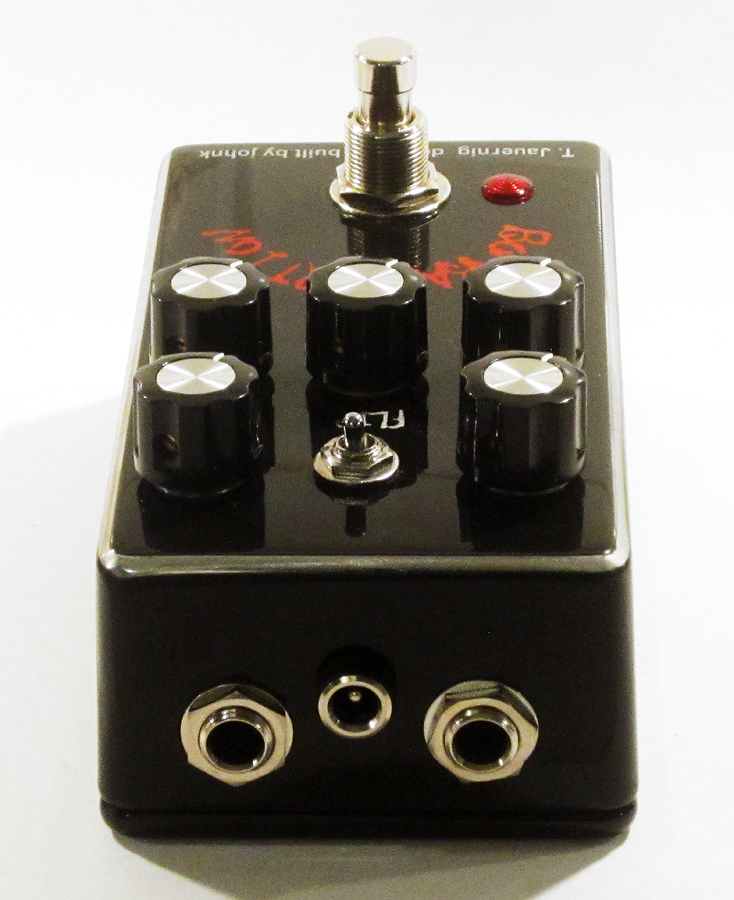

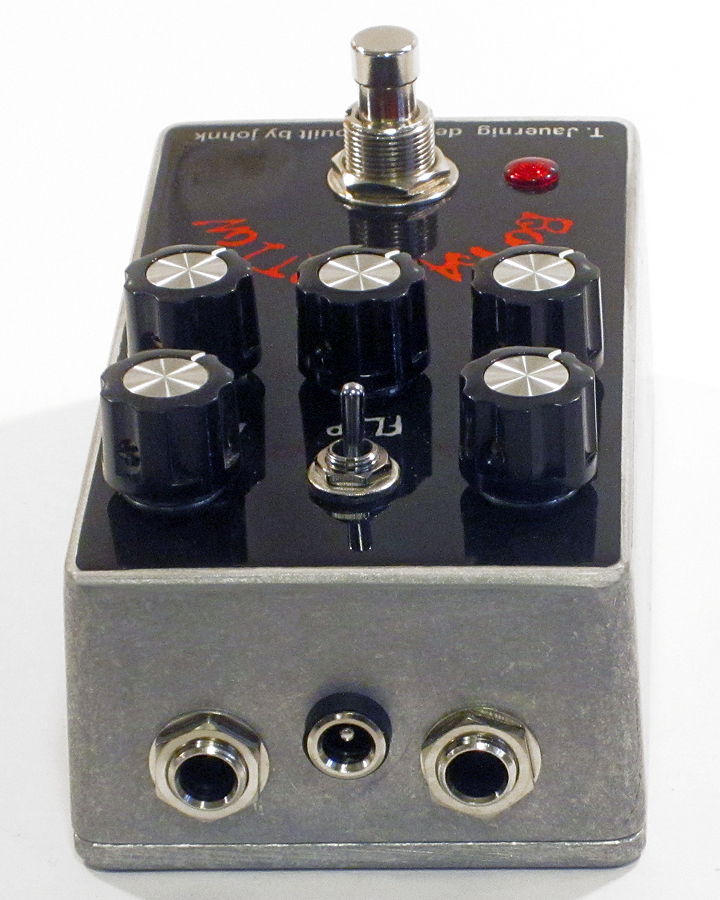

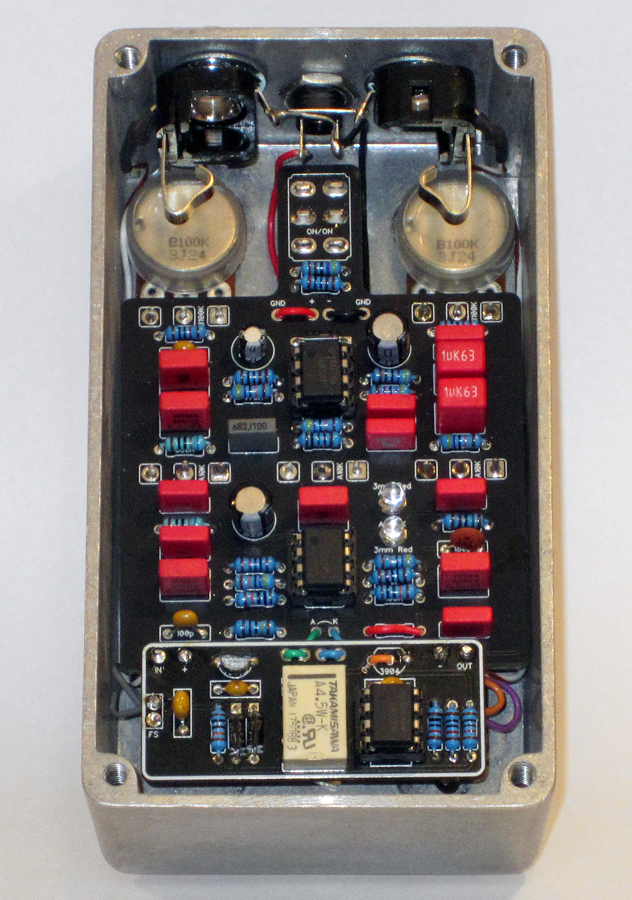

This is my clone of T.Jaurnig's Bombastortion. These are VERY Rare and hard to find at a reasonable price these days. Many of them are listed on Reverb right now are ranging from $750- $3999! The originals have all side jacks but I built this one in a 125B with all top jacks (Lumberg). The original also has a regular clicking 3PDT bypass, but I used a relayed soft click true bypass in my version. I also used high quality resistors and capacitors (mostly WIMA). This pedal sounds great with both a bass and guitar.

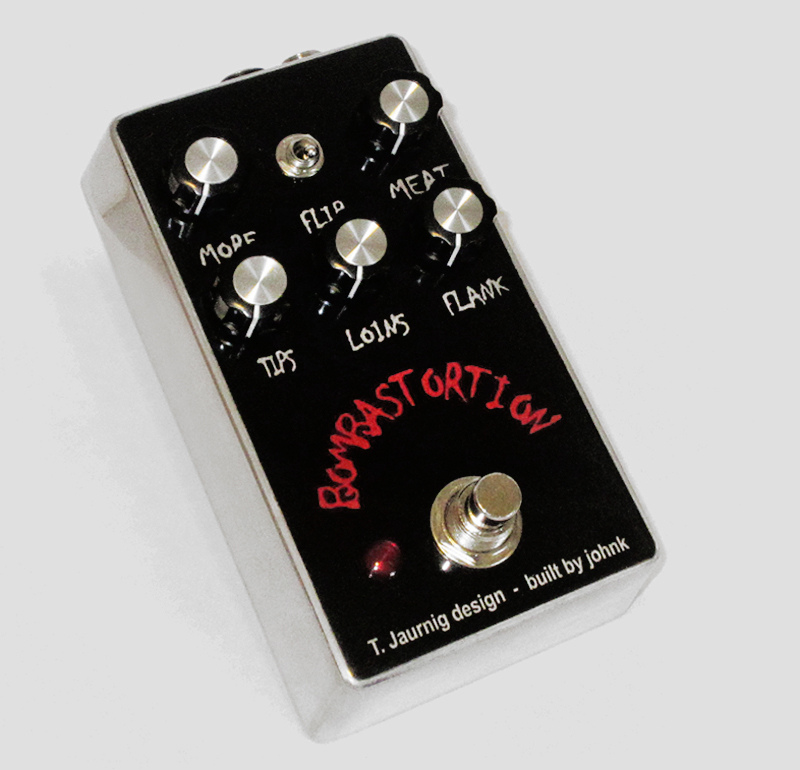

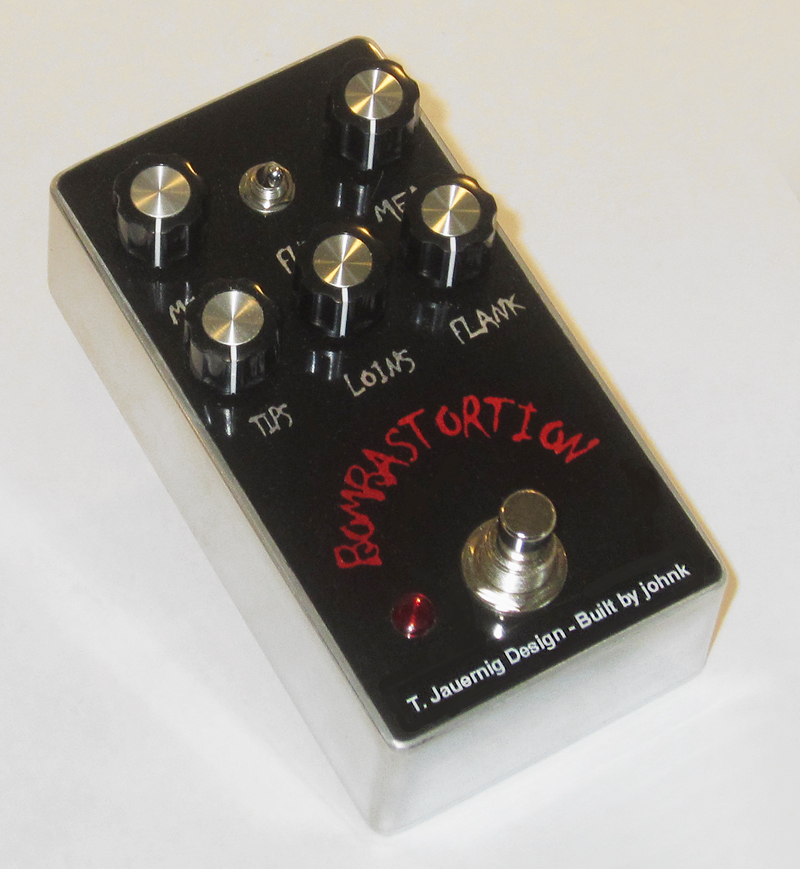

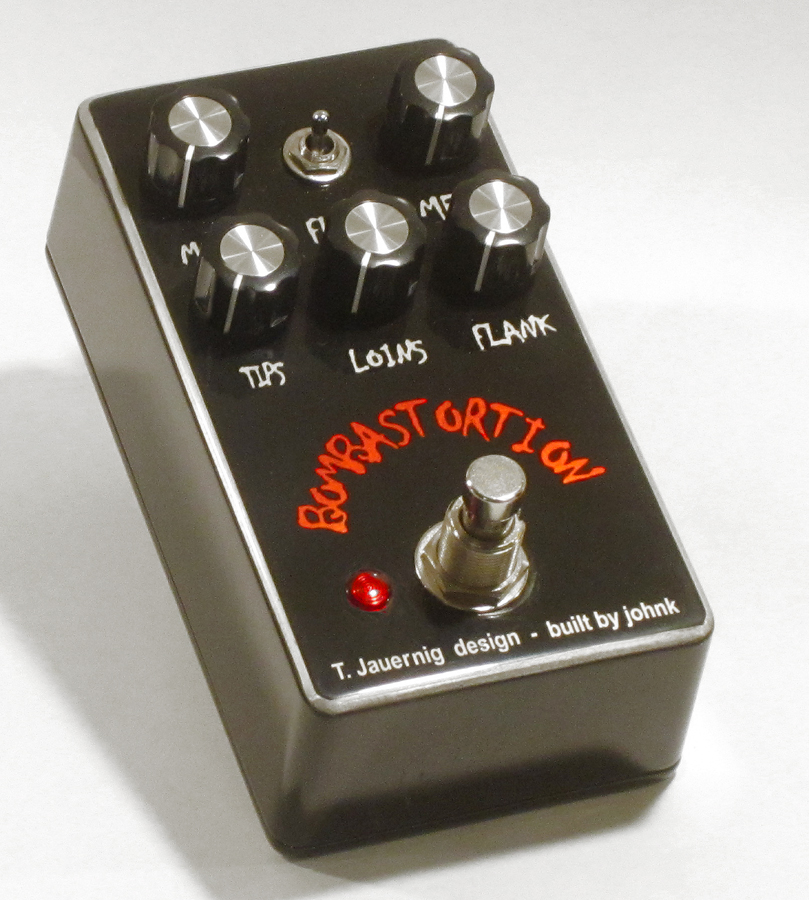

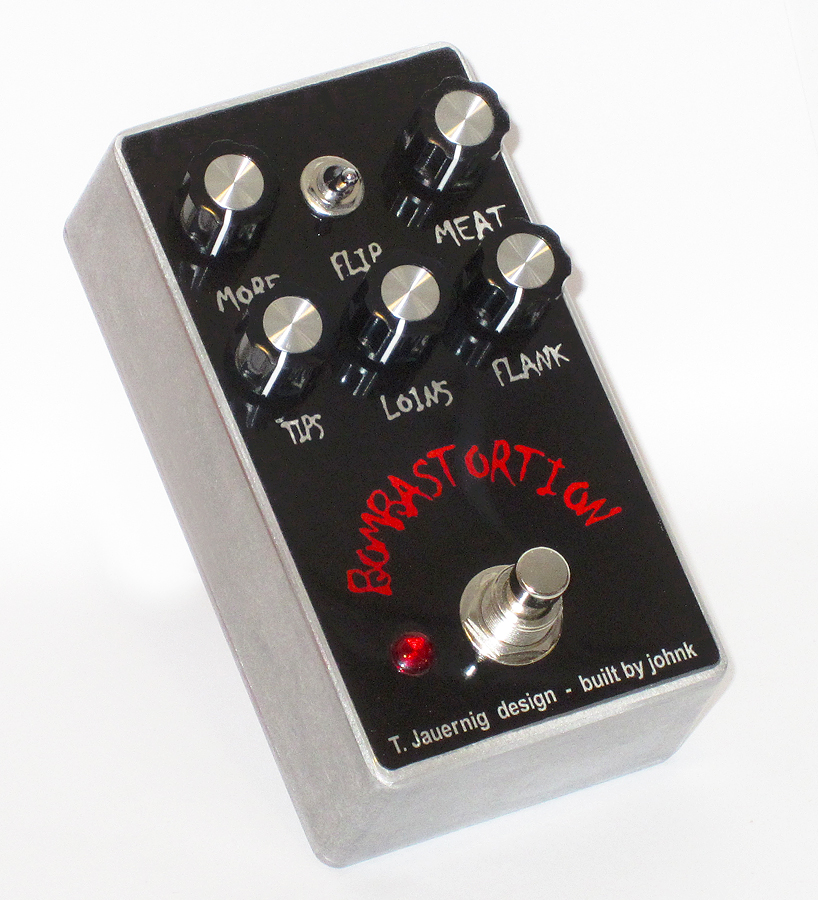

The controls are:
More=Output volume
Flip Switch=Up-Guitar Down=Bass
Meat=Gain/OD
Tips=Treble
Loins=Midrange
Flank=Bass
