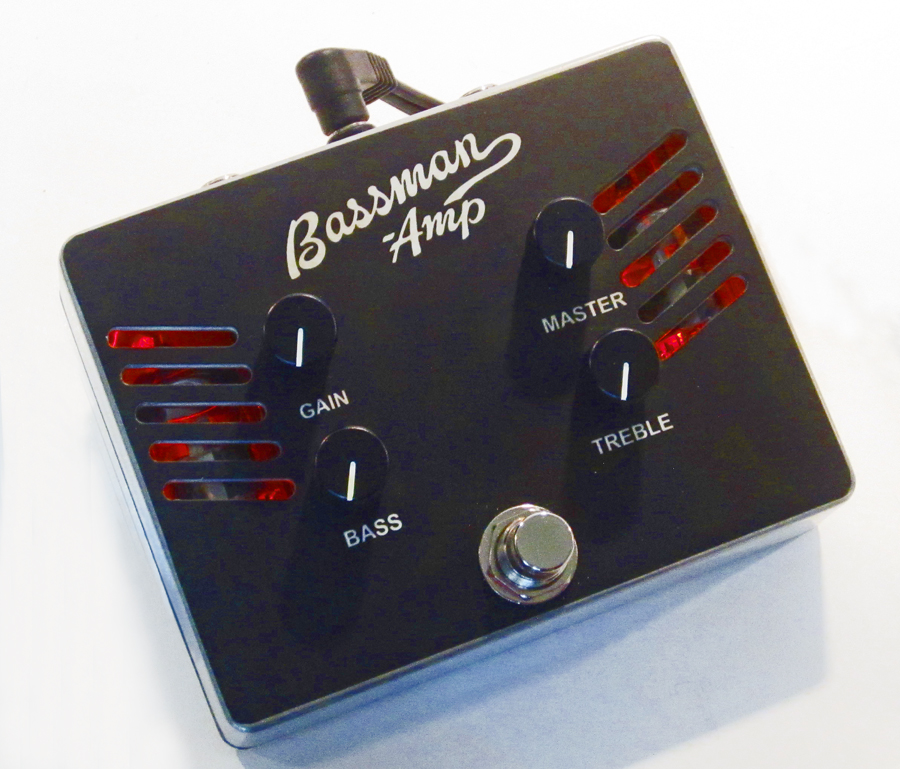

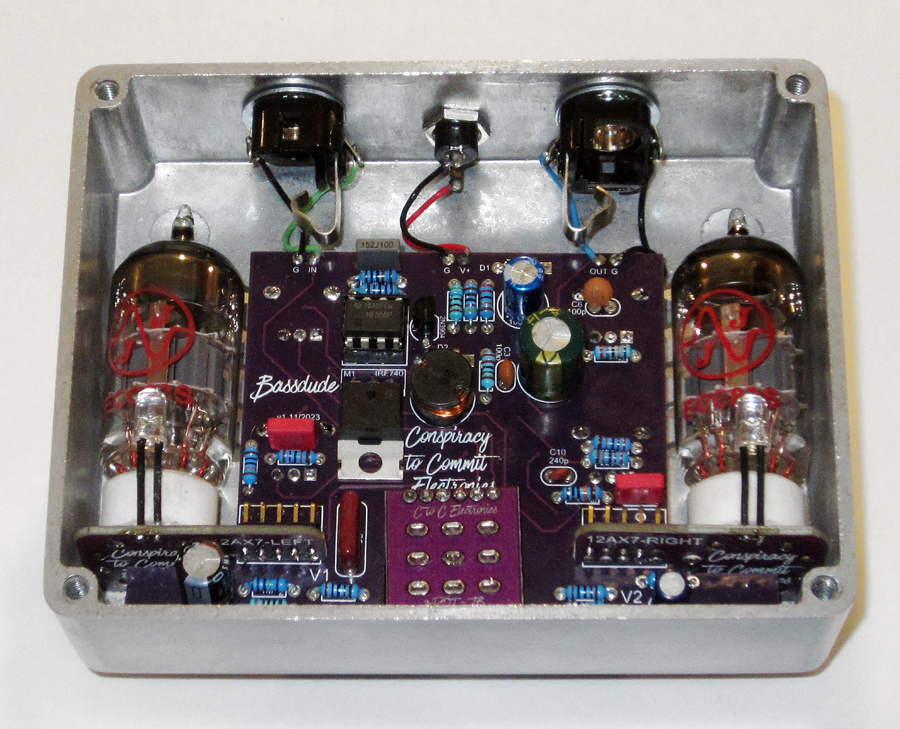

This pedal was built from a Conspiracy to Commit Electronics PCB and enclosure. It's basically a Fender a '55 tweed Fender Bassman 5D6 tube preamp. All of the parts had to be sourced to build it. It requires 2 tubes (this one has one NOS GE 12AX7A and one JJ ECC83). It requires a 9 volt center negative power supply capable of at least 550ma (not included). The tubes run at high voltage (not a starved plate design) just like the original Fender Bassman amp.
It comes in a 1590B enclosure and I made the label for it myself (decal with 6 coats of poly). I used all high quality components including Neutrik 1/4" jacks a Lumberg DC jack WIMA capacitors and black anodized aluminum knobs. This Pedal draws 514ma so make sure that your power supply has enough current. It also has a true bypass stomp switch.
it's capable of going from clean to a lot of overdrive/distortion. The bass and treble controls are boost only with flat at fully counter clockwise.
